Product Summary

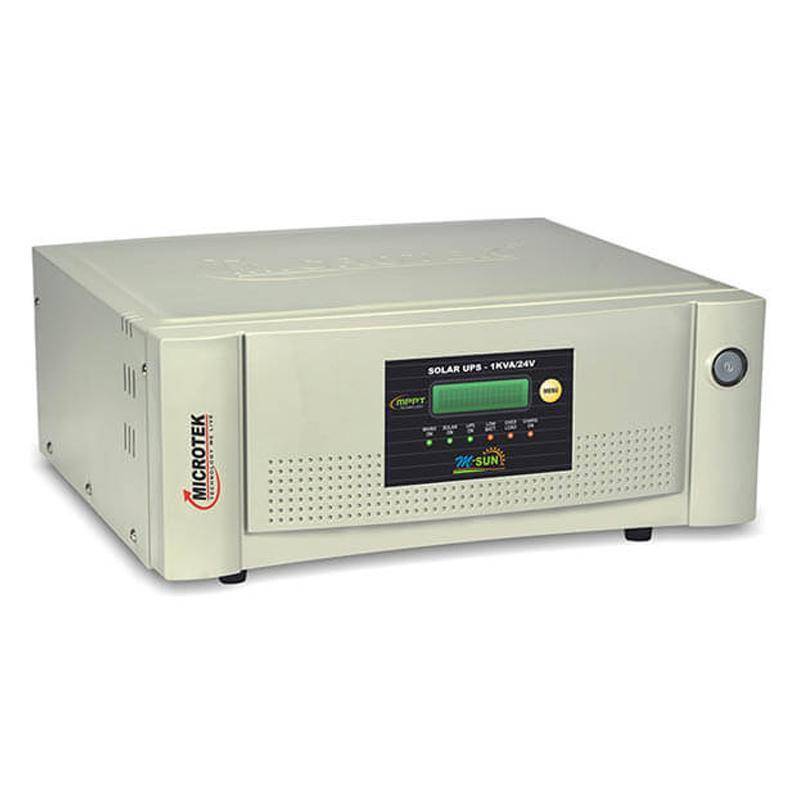

Microtek 1 KVA Mppt based solar inverter is the best in the industry. It is a off grid solar inverter which is designed to give power using solar panel. The It is a highest star rated and most popular solar inverter in double battery in India.
- 1000 Wp Solar Panel connectivity
- Pure Sine Wave output
- Digital display with LED indications
Descriptions
Running Power |
Fans (3-5), Lights (8-10), Television (1), Refrigerator (1), Desktop / Laptop (2) |
Capacity |
1000 VA |
Battery System |
24 V (two battery) |
Battery support |
80 Ah ~ 200 Ah |
Panel Support |
1000 Wp |
Battery Full charging time |
6- 8 hours |
Technicals
Wave Type |
Pure Sine Wave |
Charger Technology |
MPPT (latest) |
Solar panel current |
40 amps |
Solar panel VOC |
30V – 85V |
Transfer Time |
≤ 12 msec. |
Mains Re-Connect / Dis-Connect Voltage |
23 V & 28.2 V |
Voltage Window |
100 V – 300V (Standard) 180V – 260 V (Narrow) |
Protections |
Short Circuit, High voltage, Low battery shutdown |
Inverter monitoring – Display
Microtek solar inverters are made with customer friendly monitoring system, there are two kinds of display in inverters to monitor functioning of solar inverters.
Led display
- utility grid available
- solar charging
- ups on
- battery is low
- overload
- battery charging form electricity
Lcd display
- battery voltage – charge level of battery
- load % - power consumption as a % of total inverter power
- output voltage
- pv voltage – solar panel generating voltage
- pv current – solar panel generating power in amps
- grid voltage – utility grid voltage level
- grid charging current – amp with which battery is being charged
- electricity saved - kwh
User Manual
Download user manual to know technical details in depth and how to install it.
